1. Introduction
The most common mistake made when calculating the voltage magnitude across the high leg of a 4 wire delta transformer secondary with a center tapped winding is not including the phase angles when you sum the voltages.
Remember, these are complex numbers, so to calculate the high leg voltage you’ll need to add up the complex value of each voltage.
Let’s start with a 240 volt rated three-phase delta secondary transformer with a center tapped B phase winding:
2. Solving for Phase Voltages:
Since the three-phase delta transformer is rated for 240V, each of the phase winding voltages (also equal to the line voltages of the connected system) will have a magnitude of 240V:

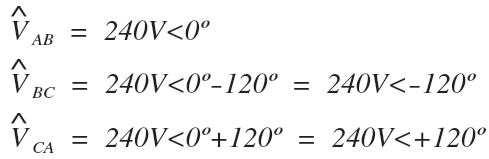

Let’s assign a voltage reference of zero degrees for the A phase winding (VAB), and then calculate the voltage angles for the B and C phase windings (VBC, VCA), assuming a balanced and positive ABC sequence system:
3. Solving for The Center Tapped Voltage Magnitude:

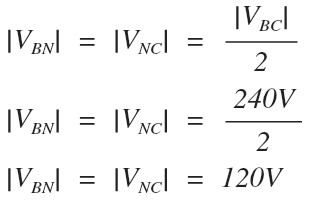

Next, let’s calculate the center tapped voltage magnitudes from B to neutral, and neutral to C. When a winding is center-tapped, it divides the turns ratio of that winding by half when connecting to the neutral connection:
Notice the subscripts for these voltages. The first subscript always notes the positive (+) voltage reference, and the second subscript notes the negative (-) voltage reference.
4. Solving for The Center Tapped Voltage Angle:
The phase angle and voltage polarity for both of the center tapped winding voltages from B to neutral, and neutral to C will match that of the B phase winding voltage (VBC) that it is tapped from.
The B phase winding has a positive voltage reference measured from B, and a negative voltage reference measured from C, which means the voltage polarity reference will be from B (+) to neutral (-) and neutral (+) to C (-):
It helps to look at the circuit diagram while completing this step.
5. Solving for The High Leg Voltage Method 1:
We are now ready to calculate the voltage across the high leg of the 4 wire delta transformer secondary with one center-tapped winding.

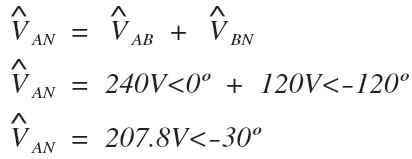

The high leg occurs across the A to neutral phase (VAN). We can calculate it starting at A, going in a clockwise direction to N:
The high leg voltage magnitude is approximately 208 volts with an angle of negative 30 degrees when a reference of zero degrees for the A Phase voltage (VAB) is used.
Changing the reference angle of the A phase voltage (VAB) would only result in a different angle for the high leg voltage. The magnitude of the high leg voltage would remain the same.
6. Solving for The High Leg Voltage Method 2:

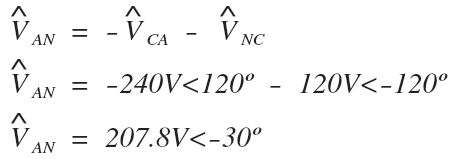

We can also calculate the high leg voltage starting at A and going in a counterclockwise direction to N:
Again we find that the high leg voltage magnitude is approximately 208 volts with an angle of negative 30 degrees when a reference of zero degrees for the A Phase voltage (VAB) is used.
Changing the reference angle of the phase voltage (VAB) would only result in a different angle for the high leg voltage. The magnitude of the high leg voltage would remain the same.
7. Completed High Leg Delta Circuit Diagram:
Below is the completed high leg delta circuit diagram with a B phase center-tapped winding with all voltages filled in for the above example.
The phase winding voltages of the transformer (VAB, VBC, VCA) appear in red.
The center tapped winding voltages (VBN, VNC) and the high leg voltage (VAN) appear in orange.
8. Completed High Leg Delta Phasor Diagram:
Below is the completed voltage phasor diagram for the above example.
The phase winding voltages of the transformer (VAB, VBC, VCA) appear in red.
The center tapped winding voltages (VBN, VNC) and the high leg voltage (VAN) appear in orange.
9. Conclusion:
The benefits of a high leg delta is the ability to deliver power at additional voltage magnitudes compared to a standard three-phase delta connection.
For example, a 240V three-phase standard delta connection is only able to provide power to:
- Three-phase 240V loads connected across all three terminals
- Single-phase 240V loads connected across any of the phase windings
However, a 240V three-phase delta connection with a center tapped winding is able to provide power to the same loads as the three-phase standard delta connection in addition to:
- Single-phase 120V loads across the center tapped winding and neutral (VBN, VNC)
- Single-phase 208V loads across the high leg connection (VAN).
Greater care must be taken not to overload or unbalance a high leg delta connection.
Per NEC 408.3(E)(1), the B phase shall have the higher voltage to ground for 3-phase 4-wire, delta-connected systems, so the standard convention is for the neutral to be connected in between the A and C phase.
